DC to AC Converter (Inverter)

  • Designed a MOSFET-based full H-bridge inverter with variable frequency output (10 Hz to 100 kHz).
  • Developed gate drive circuits and generated gate pulses using an Arduino Nano microcontroller.
  • Simulated the inverter circuit using MATLAB and Proteus.

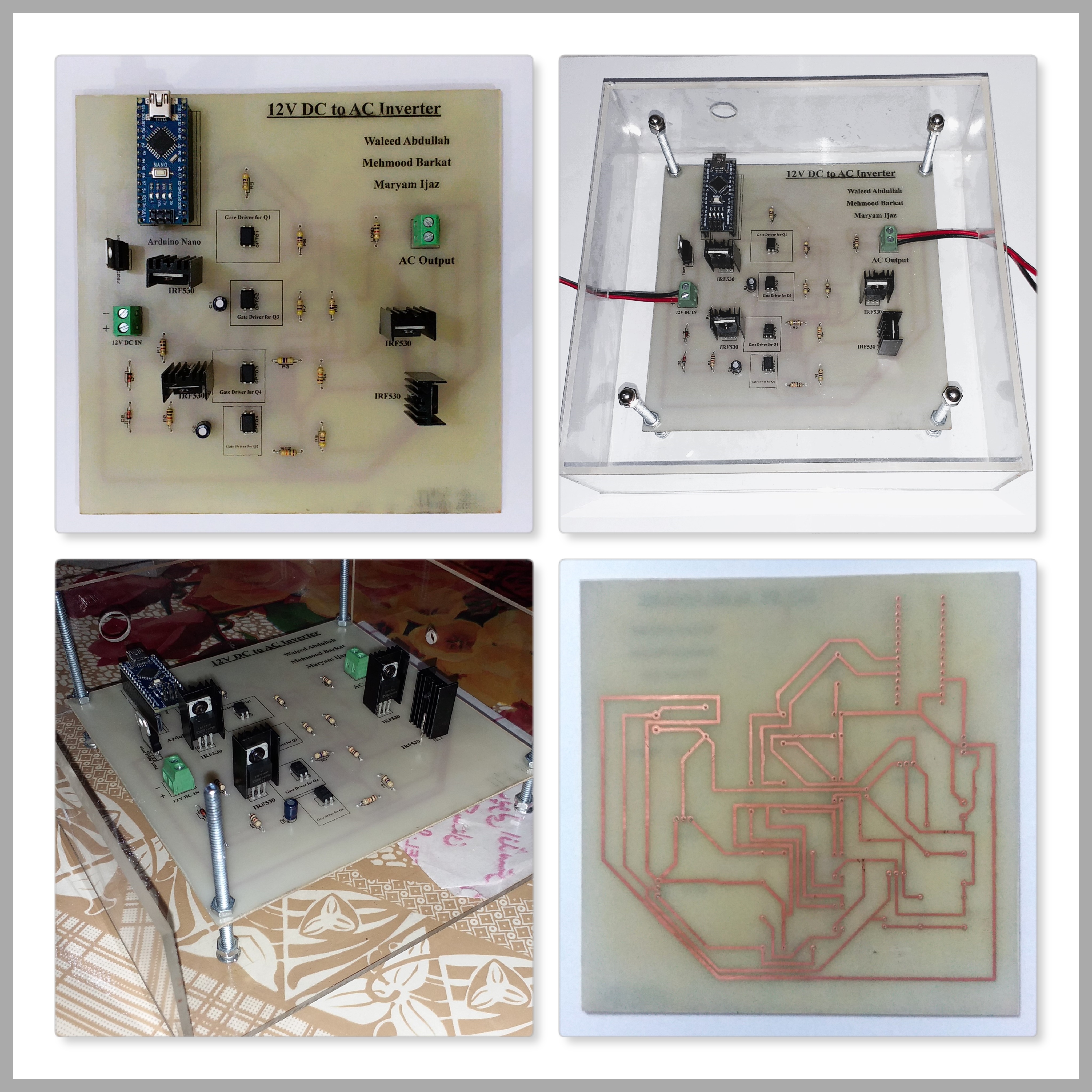

  • Designed and fabricated the PCB, followed by successful hardware implementation.

Technologies Used:

Power Electronics
Inverter Design
MATLAB
Proteus
Arduino
PCB Design
Circuit Implementation
